Intercooler

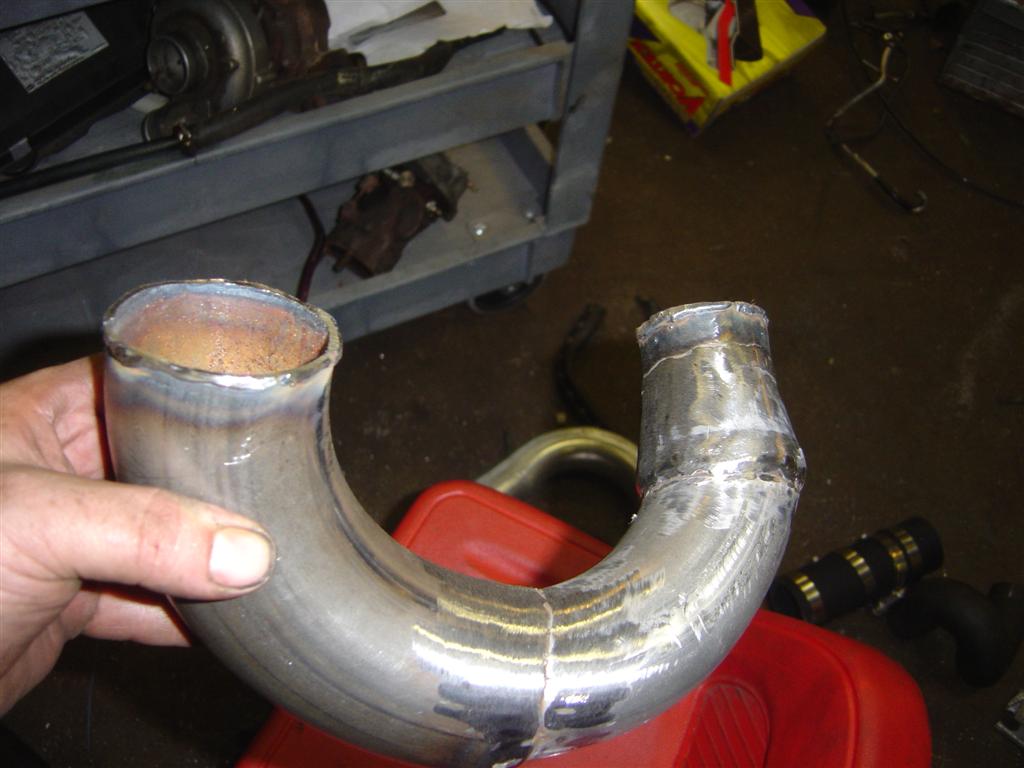

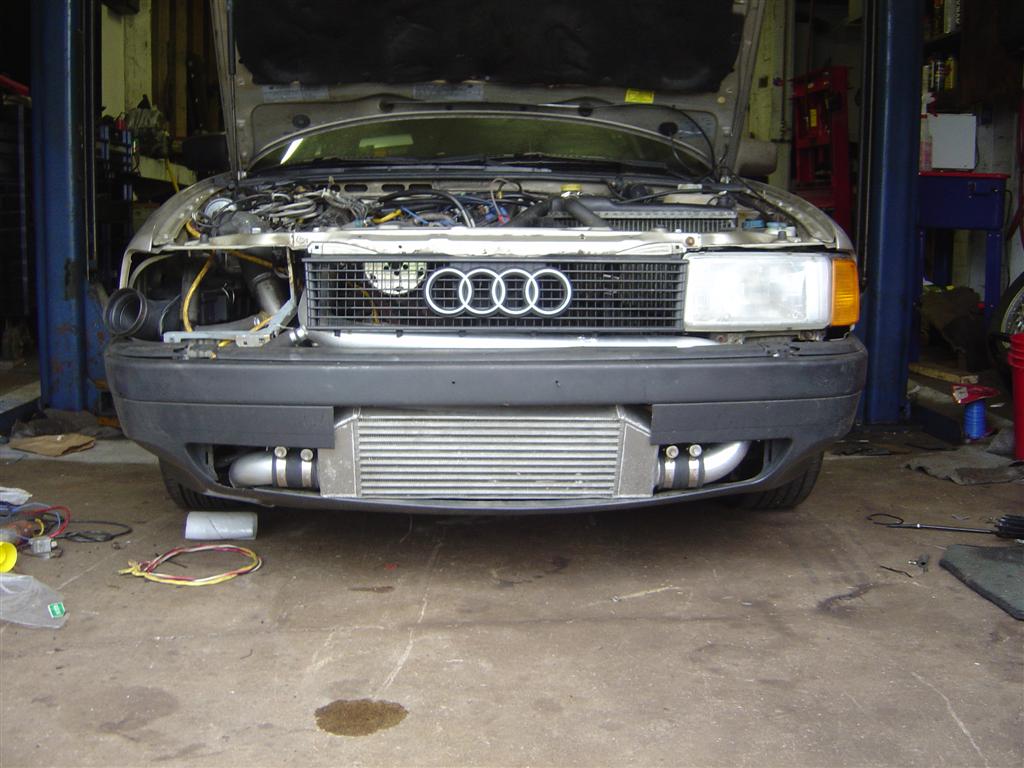

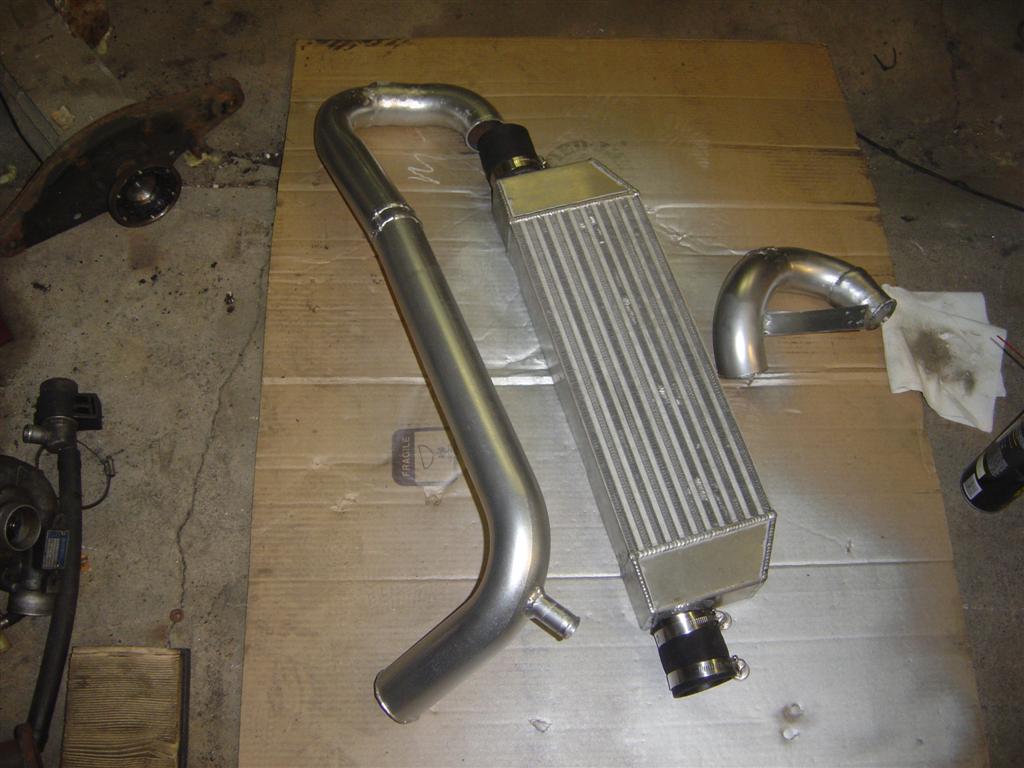

This one's bigger than the single pass converted 5KTQ intercooler I used previously. The core's 18"X7"X3", with 2.5"inlet & outlet. I used 2.5" steel pipes with mandrel bends to connect. The bends were 6" radius, I had to use what I had laying around (I would have much preferred to use 3" or 4" radius bends). On the turbo to intercooler pipe I made on end reduce down to 2".
